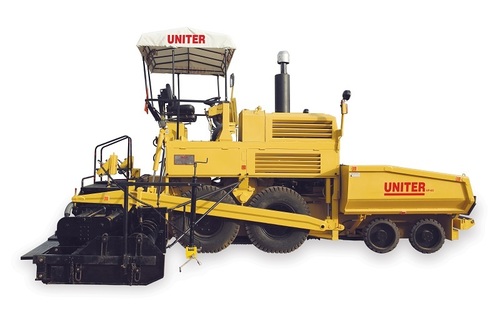

Sensor paver

Sensor paver
Sensor paver
Send Inquiry
Product Code : VP-05
Brand Name : UNITER
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price Range
  • 48000.00 - 95000.00 USD ($)
  • Price
  • 94,600 USD ($)
Product Specifications
  • Type
  • Pavers
  • Material
  • Laying suitability: Bituminous, Wet mix, GSB, DLC,DBM material
  • Capacity
  • Laying Capacity: 300 TPH Ton/day
  • Automatic Grade
  • Automatic
  • Power
  • 125 hp @ 2300 rpm Megaampere ( MA)
  • Weight
  • 14100 Kilograms (kg)
Product Description

We introduce ourselves as a prominent manufacturer and supplier of Sensor Paver. These are equipped with electronic sensor for grade and slope control giving accurate level of laid surface and quality output. This product is extensively used in construction industry for paving asphalt material on roads, parking lots, bridges, highways and various other locations. Our offered Sensor Paver is acknowledged for their dimensional accuracy, fine finish, hygienic finish and durability. It is also known to have sturdy structure with user friendly controls. This paver operates hydraulically and has extendable structural configuration.

Technical Specification

Power Unit


Kirloskar Make Water-Cooled Electric Start Diesel Engine, Model 6r 1080 Ta1, 125 Hp (93 Kw) @ 2200 Rpm Or Equivalent

Electrical System

12 V Dc

Emission Standard


Speed Reduction Gearbox

Two Speed Reduction Gearbox To Achieve Low Speed For Paving And High Speed For Traveling.


Laying Suitability

Option 1: Bituminous Material

Option 2: Bituminous, Wet Mix, Gsb, Dlc,Dbm Material (Dual Purpose)

Laying Capacity

300 Tph

Laying Thickness

300 Mm (Max) To 10 Mm (Min)

12'' (Max) To 3/8'' (Min)



Working Speed

0 To 30 M/Min (Max.)

Travelling Speed

0 To 16 Km/Hr (Max)


14,100 Kg (31,200 Lb) Approx.

Slope & Grade Control

Moba, Germany Make Electronic Sensor

(Auto & Manual Mode Available)

Maintenance Shutters

On Three Side Of Machine

Traction & Conveyor Pump Motor

Sauer Danfoss, Germany Or Equivalent


Screed Width

2.5 M Basic Width, Hydraulically Extendable Up To 4.5 M , Bolt On Extension Up To 5.5 M

Option: Attachment Up To 6.0m

Crown (Manual)

-1° / +4°

Screed Heating

Yes, With 8 Lpg Burner Facility

Screed Vibration

Yes, Infinitely Variable (0 To 50.00 Hz )

Screed Tamping

Yes, Infinitely Variable ( 0 To 33.33 Hz )

Under Carriage

Rear Wheel

Four No. Pneumatic Tyre

Size: 10.00 X 20

Front Wheel

Four No. Solid Rubber Tyre

550 Dia. X 175 Mm Wide

Refill Capacities


156 L (34.4 Gal)

Hydraulic Oil

282 L (62.1 Gal)

Cooling System

6.5 L (1.4 Gal)

Engine Oil

14 L (3.0 Gal)

Operator Station

Control Panel Type


Operator Seat

Double Operator Seat

Travelling Function

Left & Right Side

Operating Function

Left & Right Side




Caliper Disc Brake On Both The Sides

Conveyor & Auger System

Conveyor & Auger

2 Sets, One On Each Side

Conveyor Drive


Conveyor Control

On / Off Switch Function

Auger Screw Size

Dia 300 Mm

Auger Material

Ni-Hard / High Chromium Steel Material

Hopper & Feeding System

Hopper Operation


Hopper Capacity

4.25 M3 (151 Ft3)

Hopper Width

Working: 3.22 M

Closed:    2.44 M

Feed Tunnel Width

1.268 M


Operating Height

3.47 M

Shipping Height (canopy Tilted)

2.90 M

(w/o Canopy & Exhaust)

2.68 M

Shipping Width

2.57 M

Length (Tractor Unit + Screed)

6.67 M

Wheel Base

2.61 M

Dump Height

0.70 M

Thrust Roller Height

0.54 M

Trade Information
  • Supply Ability
  • 4 Per Month
  • Delivery Time
  • 6 Week
  • Packaging Details
  • Canvas Canopy, Working & Traveling Lights,Tool Kit with Jack,Horn
  • Main Domestic Market
  • All India
  • Certifications
  • ARAI (Automotive Research Association of India)
