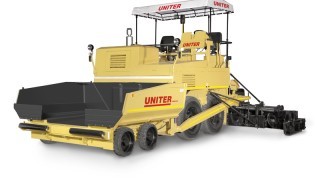

Mechanical Wetmix Paver

Mechanical Wetmix Paver

69,020 USD ($)

Product Details:

  • Type Pavers
  • Material Laying suitability: Bituminous, Wet mix, GSB, DLC,DBM material
  • Automatic Grade Manual
  • Power 76 hp @ 2200 rpm Statampere (sA)
  • Weight 13200 Kilograms (kg)
  • Supply Ability : 4 Unit Per Month
  • Click to view more
X

Price And Quantity

  • 69,020 USD ($)
  • 48000.00 - 95000.00 USD ($)
  • 1 Unit

Product Specifications

  • Manual
  • 13200 Kilograms (kg)
  • Pavers
  • Laying suitability: Bituminous, Wet mix, GSB, DLC,DBM material
  • 76 hp @ 2200 rpm Statampere (sA)

Trade Information

  • 4 Unit Per Month
  • 6 Week
  • Canvas Canopy, Working & Traveling Lights,Tool Kit with Jack,Horn
  • All India
  • ARAI (Automotive Research Association of India)

Product Description

Available at industry leading prices, Mechanical Wetmix Paver offered by us is a value added solution for laying concrete or asphalt on the surfaces. We manufacture these machines using finest grade raw material, technology as well as durable components to ensure our clients complete value for money and better experience. Prior to final dispatch, we thoroughly inspect functioning, operation and performance of Mechanical Wetmix Paver to guarantee optimum output and compliance with the industry standards. Furthermore, our widespread distribution network helps us in reaching our clients with highly efficient and durable machines within the promised time frame. It has been provided with hydraulically controlled steering & transmission system for enhanced efficiency.

Technical Specifications

POWER UNIT


Engine


Kirloskar make water-cooled electric start diesel engine, Model 4R 1040T, 76 hp (57 kW) @ 2200 rpm or equivalent

Electrical System


12 V DC

Emission Standard


BS-III

Eight Speed Reduction Gearbox


Eight speed reduction gearbox


PERFORMANCE

Laying suitability

Option 1: Bituminous material
Option 2: Bituminous, Wet mix, GSB, DLC, DBM material

Laying Capacity


100 TPH

Laying Thickness

200 mm (Max) to 10 mm (Min)

8" (Max) to 3⁄8" (Min)

Transmission


Hydrostatic (option: Mechanical)

Working Speed


1.27 to 24 m/min (Max.)

Travelling Speed


16 km/hr (Max)

Weight


9400 kg (20,780 lb) approx.

Slope & Grade Control


Manual

Maintenance Shutters


On two side of machine

Convey & Pump – Motor


Sauer Danfoss, Germany or equivalent

SCREED

Screed width

2.5 m (8′ 2 1/2”) basic width,

Hydraulically extendable up to 4.5 m (14′ 9 1/8”)

Crown (Manual)


-1° / +4°

Screed Heating


Yes, with 8 LPG burner facility

Screed Vibration


Yes (Fix Speed)

UNDER CARRIAGE


Rear Wheel

Two no. Pneumatic Tyre

Size: 11.00 x 20

Front Wheel

Two no. Solid Rubber Tyre

550 Dia. x 175 mm wide


REFILL CAPACITIES

Fuel


76 L (16.8 gal)

Hydraulic Oil


120 L (26.5 gal)

Cooling System


6.5 L (1.4 gal)

Engine Oil


11 L (2.4 gal)


OPERATOR STATION


Control Panel Type


Sliding

Operator Seat


Double operator seat

Travelling Function


Left & Right side

Operating Function


Left

Steering


Hydraulic

Brake


Caliper disc brake on both the sides


CONVEYOR & AUGER SYSTEM

Conveyor & Auger


2 Sets, one on each side

Conveyor Drive


Mechanical

Conveyor Control


Lever provided on left side

Auger Screw Size


Dia 250 mm (10")

Auger Material


Ni-Hard / High Chromium Steel Material


HOPPER & FEEDING SYSTEM

Hopper Operation


Hydraulic

Hopper Capacity


4.25 m3 (151 ft3)

Hopper Width

Working: 3.220 m (10′ 6¾”)
Closed: 2.440 m (8′)

Feed Tunnel Width


1.276 m (4' 2")


DIMENSIONS

Operating Height


3.56 m (11′ 81⁄8″)

Shipping Height (canopy tilted)


2.70 m (8′ 105/16”)

(w/o canopy & exhaust)


2.62 m (8′ 7 1/4” )

Shipping Width


2.69 m (8′ 10”)

Length (Tractor unit + screed)


5.53 m (18′ 1 3/4”)

Wheel Base


2.62 m (8′ 7 1⁄4″)

Dump Height


0.70 m (2′ 3½”)

Thrust Roller Height


0.57 m (1′ 10 1/2”)



UNITER ENGINEERING PRODUCTS
