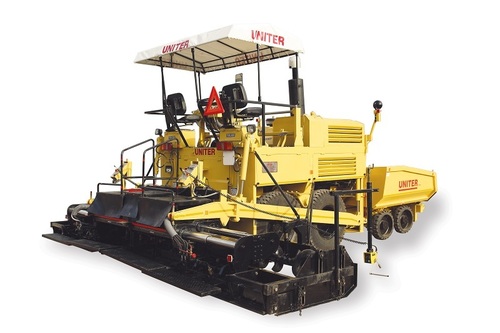

Hydrostatic Sensor Paver Finisher Model VP-05

Hydrostatic Sensor Paver Finisher Model VP-05

94,600 USD ($)

Product Details:

  • Type Pavers
  • Material Laying suitability: Bituminous, Wet mix, GSB, DLC,DBM material
  • Capacity Laying Capacity: 300 TPH m3/hr
  • Automatic Grade Automatic
  • Vibration Frequency 50 Hertz (HZ)
  • Power 125 hp @ 2300 rpm Statampere (sA)
  • Weight 14100 Kilograms (kg)
  • Supply Ability : 4 Per Month
  • Click to view more
X

Price And Quantity

  • 48000.00 - 95000.00 USD ($)
  • 1 Unit
  • 94,600 USD ($)

Product Specifications

  • Pavers
  • 50 Hertz (HZ)
  • 125 hp @ 2300 rpm Statampere (sA)
  • Laying Capacity: 300 TPH m3/hr
  • Automatic
  • Laying suitability: Bituminous, Wet mix, GSB, DLC,DBM material
  • 14100 Kilograms (kg)

Trade Information

  • 4 Unit Per Month
  • 6 Week
  • Canvas Canopy, Working & Traveling Lights,Tool Kit with Jack,Horn
  • All India
  • ARAI (Automotive Research Association of India)

Product Description

Hydrostatic sensor paver finisher best in its class of wheel mounted paver finishers with electronic sensor for grade and slope control giving accurate level of laid surface and quality output. It is suitable for laying bituminous, wet mix, GSB, DLC, DBM material.

UNITER Sensor Paver Finisher Machine: Model no. VP-05

  • Material Laying Capacity: 300 TPH
  • Engine Power: 125 hp
  • Screed size: 2.5m to 5.5m
  • Wheels on rear axle: Two on each side
  • Electronic Sensor: MOBA, Germany
  • Operator Seat: Double
  • Work Applicability
  • Option 1: Bituminous material
  • Option 2: Bituminous, Wet mix, GSB, DLC, DBM material (Dual Purpose)

Technical Specification

Power Unit

Engine

Kirloskar make water-cooled electric start diesel engine, Model 6R 1080 TA1, 125 hp (93 kW) @ 2200 rpm or equivalent

Electrical System

12 V DC

Emission Standard

BS-III

Speed Reduction Gearbox

Two speed reduction gearbox to achieve low speed for paving and high speed for traveling.

Performance

Laying suitability

Option 1: Bituminous material

Option 2: Bituminous, Wet mix, GSB, DLC,DBM material (Dual Purpose)

Laying Capacity

300 TPH

Laying Thickness

300 mm (Max) to 10 mm (Min)

12″ (Max) to 3/8″ (Min)

Transmission

Hydrostatic

Working Speed

0 to 30 m/min (Max.)

Travelling Speed

0 to 16 km/hr (Max)

Weight

14,100 kg (31,200 lb) approx.

Slope & Grade Control

MOBA, Germany make electronic sensor

(Auto & Manual mode available)

Maintenance Shutters

On three side of machine

Traction & Conveyor Pump – Motor

Sauer Danfoss, Germany or equivalent

Screed

Screed width

2.5 m (8′ 2½”) basic width, Hydraulically extendable up to 4.5 m (14′ 91/8″), bolt on extension up to 5.5 m (18′ ½”)

Option: Attachment up to 6.0m (19′ 8¼”)

Crown (Manual)

-1° / +4°

Screed Heating

Yes, with 8 LPG burner facility

Screed Vibration

Yes, infinitely variable (0 to 50.00 Hz )

Screed Tamping

Yes, infinitely variable ( 0 to 33.33 Hz )

Under Carriage

Rear Wheel

Four no. Pneumatic Tyre

Size: 10.00 x 20

Front Wheel

Four no. Solid Rubber Tyre

550 Dia. x 175 mm wide

Refill Capacities

Fuel

156 L (34.4 gal)

Hydraulic Oil

282 L (62.1 gal)

Cooling System

6.5 L (1.4 gal)

Engine Oil

14 L (3.0 gal)

Operator Station

Control Panel Type

Sliding

Operator Seat

Double Operator Seat

Travelling Function

Left & Right side

Operating Function

Left & Right side

Steering

Hydraulic

Brake

Caliper disc brake on both the sides

Conveyor & Auger System

Conveyor & Auger

2 Sets, one on each side

Conveyor Drive

Hydraulic

Conveyor Control

On / off switch function

Auger Screw Size

Dia 300 mm (12″)

Auger Material

Ni-Hard / High Chromium Steel Material

Hopper & Feeding System

Hopper Operation

Hydraulic

Hopper Capacity

4.25 m3 (151 ft3)

Hopper Width

Working: 3.22 m (10′ 6 3⁄4″)

Closed:    2.44 m (8′)

Feed Tunnel Width

1.268 m (4′ 1 5⁄8″ )

Dimensions

Operating Height

3.47 m (11′ 4 5⁄8″)

Shipping Height (canopy tilted)

2.90 m (9′ 6 1⁄4″)

(w/o canopy & exhaust)

2.68 m (8′ 9 1⁄2″)

Shipping Width

2.57 m (8′ 5 1⁄4″)

Length (Tractor unit + screed)

6.67 m (21′ 10 1⁄2″)

Wheel Base

2.61 m (8′ 6 7⁄8″)

Dump Height

0.70 m (2′ 3 1⁄2″)

Thrust Roller Height

0.54 m (1′ 9 1⁄4″)


UNITER ENGINEERING PRODUCTS
