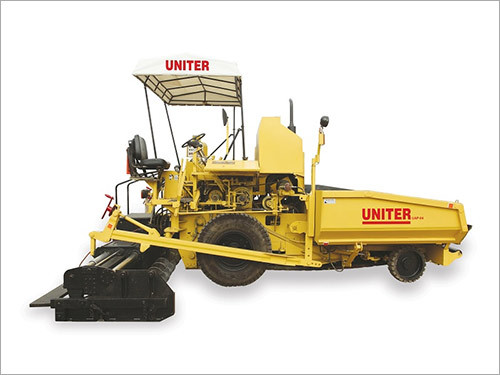

Hydraulic Paver Machines

Hydraulic Paver Machines
Hydraulic Paver Machines
Send Inquiry
Product Code : UAP-04
Brand Name : UNITER
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price
  • 56,170 USD ($)
Product Specifications
  • Type
  • Pavers
  • Material
  • Laying suitability: Bituminous, Wet mix, GSB, DLC,DBM material
  • Capacity
  • Laying Capacity: 100 TPH Cubic Millimeter (mm3)
  • Automatic Grade
  • Manual
  • Power
  • 76 hp @ 2200 rpm Ampere (amp)
  • Weight
  • 9415 Kilograms (kg)
Product Description
By keeping track of the latest market growths, we are actively involved in manufacturing and supplying a broad range of Hydraulic Paver Machines. Acknowledged for hassle free operation, this machine is demanded to make roadways at the airports. Provided product is manufactured with quality checked components by a troop of diligent professionals. In addition to this, the offered Hydraulic Paver Machines can be availed from us within set time frame at affordable rates. They are greatly admired for assuring accurate leveling & smooth finish with help of their electronic sensors. These machines are also provided with step-less feeding control system which is operated hydraulically.

For more detail, please send inquiry to us.

Technical Specification

Power Unit


Kirloskar Make Water-Cooled Electric Start Diesel Engine, Model 6r 1080 Ta1, 125 Hp (93 Kw) @ 2200 Rpm Or Equivalent

Electrical System

12 V Dc

Emission Standard


Speed Reduction Gearbox

Two Speed Reduction Gearbox To Achieve Low Speed For Paving And High Speed For Traveling.


Laying Suitability

Option 1: Bituminous Material

Option 2: Bituminous, Wet Mix, Gsb, Dlc,Dbm Material (Dual Purpose)

Laying Capacity

125 TPH

Laying Thickness

200 mm (Max) to 10 mm (Min)
8″  (Max) to 3⁄8″ (Min)



Working Speed

1.27 to 24 m/min (Max.)

Travelling Speed

16 km/hr (Max)


9,000 kg  (19,800  lb) approx.

Slope & Grade Control

Manual mode

Maintenance Shutters

On right side of machine


Screed Width

2.5 m (8′ 2½â€) basic width
Hydraulically extendable upto 4.5 m (14′ 9⅛”)

Crown (Manual)

-1° / +4°

Screed Heating

Yes, with 8 LPG burner facility

Screed Vibration

Yes (Fix Speed)

Screed Tamping

No. Available on request

Under Carriage

Rear Wheel

Two no. Pneumatic Tyre
Size: 11.00 x 20

Front Wheel

Two no. Solid Rubber Tyre
550 Dia. x 175 mm wide

Refill Capacities


124 L (27.3 gal)

Hydraulic Oil

46 L   (10.1 gal)

Cooling System

6.5 L  (1.4 gal)

Engine Oil

11 L   (2.4 gal)

Operator Station

Control Panel Type

Fixed on Right side

Operator Seat

Single Operator Seat on Right Side

Travelling Function

Right side

Operating Function

Right side




Caliper disc brake

Conveyor & Auger System

Conveyor & Auger

2 Sets, One On Each Side

Conveyor Drive


Conveyor Control

On / Off Switch Function

Auger Screw Size

Dia 250Mm (10″)

Auger Material

Ni-Hard / High Chromium Steel Material

Hopper & Feeding System

Hopper Operation


Hopper Capacity

4.25 M3 (151 Ft3)

Hopper Width

Working: 3.220 M (10′ 6 3⁄4″)

Closed:    2.440 M (8′)

Feed Tunnel Width

1.276 M (4′ 1 5⁄8″ )


Operating Height

3.30 m (10′ 10″)

Shipping Height (canopy Tilted)

2.21 m (7′ 3″)

(w/o Canopy & Exhaust)

2.54 m (8′ 4″)

Shipping Width

5.53 m (18′ 1¾â€)

Length (Tractor Unit + Screed)

2.62 m (8′ 7¼â€)

Wheel Base

0.80 m (2′ 7½â€)

Dump Height

0.58 m (1′ 107⁄8

Thrust Roller Height

0.57 m (1′ 10½â€)

Trade Information
  • Supply Ability
  • 4 to 5 Per Month
  • Delivery Time
  • 3 to 4 Week
  • Packaging Details
  • Canvas Canopy, Working & Traveling Lights,Tool Kit with Jack,Horn
  • Certifications
  • ARAI (Automotive Research Association of India)
