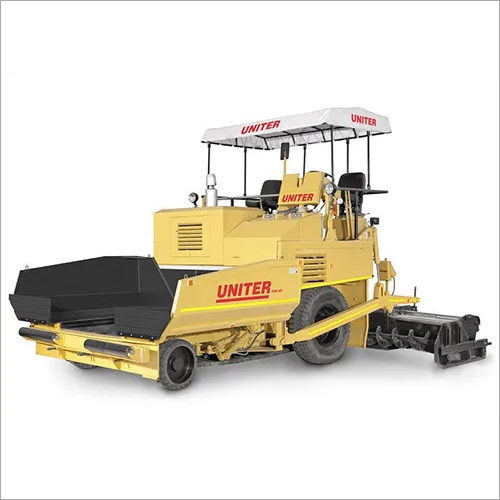

Conventional Mechanical Paver Machine

Conventional Mechanical Paver Machine

Approx 48,000 USD ($)

Product Details:

  • Type Pavers
  • Material Laying suitability: Bituminous, Wet mix, GSB, DLC,DBM material
  • Automatic Grade Manual
  • Power 76 hp @ 2200 rpm Ampere (amp)
  • Weight 9415 Kilograms (kg)
  • Supply Ability : 4 Unit Per Month
  • Click to view more
X

Price And Quantity

  • 48000.00 - 95000.00 USD ($)
  • 1 Unit
  • Approx 48,000 USD ($)

Product Specifications

  • Laying suitability: Bituminous, Wet mix, GSB, DLC,DBM material
  • Manual
  • 9415 Kilograms (kg)
  • Pavers
  • 76 hp @ 2200 rpm Ampere (amp)

Trade Information

  • 4 Unit Per Month
  • 6 Week
  • Canvas Canopy, Working & Traveling Lights,Tool Kit with Jack,Horn
  • West Bengal, Uttarakhand, Uttar Pradesh, Tripura, Telangana, Tamil Nadu, Sikkim, Rajasthan, Pondicherry, Punjab, Odisha, Nagaland, Manipur, Meghalaya, Mizoram, Maharashtra, Madhya Pradesh, Lakshadweep, Kerala, Karnataka, Jharkhand, Jammu and Kashmir, Himachal Pradesh, Haryana, Goa, Gujarat, Daman and Diu, Dadra and Nagar Haveli, Delhi, Chandigarh, Chhattisgarh, Bihar, Arunachal Pradesh, Assam, Andhra Pradesh, Andaman and Nicobar Islands, West India, East India, North India, Central India, South India, All India
  • ARAI (Automotive Research Association of India)

Product Description

Owing to the expertise of our skilled and experienced professionals, we are able to provide an extensive range of Conventional Mechanical Paver Machine. Offered winch drives are designed by our expert and experienced engineers using advance methods and latest technology. Our manufactured winch drives are in strict compliance with the market standards. This Conventional Mechanical Paver Machine is highly reliable, abrasion & corrosion resistance and sturdily constructed. These drives go through a quality check before they are dispatched to our valued patrons. To assure powerful performance, it is provided with high quality air-cooled 3-cylinder diesel engine that has good fuel efficiency.



Power Unit

Engine

Kirloskar make water-cooled electric start diesel engine, Model 4R 1040T, 76 hp (57 kW) @ 2200 rpm or equivalent

Electrical System

12 V DC

Emission Standard

BS-III

Eight Speed Reduction Gearbox

Eight speed reduction gearbox

Performance

Laying suitability

Option 1: Bituminous material

Option 2: Bituminous, Wet mix, GSB, DLC,DBM material

Laying Capacity

125 TPH

Laying Thickness

200 mm (Max) to 10 mm (Min)

8″  (Max) to 3⁄8″ (Min)

Transmission

Hydrostatic (option : Mechanical)

Working Speed

1.27 to 24 m/min (Max.)

Travelling Speed

16 km/hr (Max)

Weight

9,400 kg  (20,780  lb) approx.

Slope & Grade Control

Manual mode

Maintenance Shutters

On two side of machine

Conveyor & Pump Motor

Sauer Danfoss, Germany or equivalent

Screed

Screed width

2.5 m (8′ 2½”) basic width

Hydraulically extendable upto 4.5 m (14′ 9⅛”)

Crown (Manual)

-1° / +4°

Screed Heating

Yes, with 8 LPG burner facility

Screed Vibration

Yes (Fix Speed)

Under Carriage

Rear Wheel

Two no. Pneumatic Tyre

Size: 11.00 x 20

Front Wheel

Two no. Solid Rubber Tyre

550 Dia. x 175 mm wide


Refill Capacities

Fuel

75 L (16.5 gal)

Hydraulic Oil

195 L (43 gal)

Cooling System

6.5 L (1.4 gal)

Engine Oil

11 L (2.4 gal)

Operator Station

Control Panel Type

Sliding

Operator Seat

Double Operator Seat

Travelling Function

Left & Right side

Operating Function

Left & Right side

Steering

Hydraulic

Brake

Caliper disc brake on both the sides

Conveyor & Auger System

Conveyor & Auger

2 Sets, one on each side

Conveyor Drive

Hydraulic

Conveyor Control

On / Off switch function on Operator Panel

Auger Screw Size

Dia 250 mm (10″)

Auger Material

Ni-Hard / High Chromium Steel Material

Hopper & Feeding System

Hopper Operation

Hydraulic

Hopper Capacity

4.25 m3  (151 ft3)

Hopper Width

Working: 3.220 m (10′ 6 ¾”)

Closed: 2.440 m (8′)

Feed Tunnel Width

1.276 m (4′ 2¼” )

Dimensions

Operating Height

3.56 m (11′ 81⁄8″)

Shipping Height (canopy tilted)

2.70 m (8′ 105⁄16″)

(w/o canopy & exhaust)

2.62 m (8′ 7¼”)

Shipping Width

2.69 m (8′ 10″)

Length (Tractor unit + screed)

5.53 m (18′ 1¾”)

Wheel Base

2.62 m (8′ 7¼”)

Dump Height

0.70 m (2′ 3½”)

Thrust Roller Height

0.57 m (1′ 10½”)


UNITER ENGINEERING PRODUCTS
