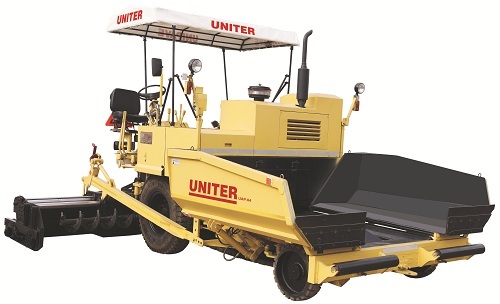

Asphalt Paver Finisher Model UAP-04
48000.00 - 95000.00 USD ($)
Product Details:
- Type Pavers
- Material Laying suitability: Bituminous, Wet mix, GSB, DLC,DBM material
- Capacity Laying Capacity: 100 TPH Kg/hr
- Automatic Grade Manual
- Power 76 hp @ 2200 rpm Microampere (μA)
- Weight 8960 Kilograms (kg)
- Supply Ability : 4 Unit Per Month
- Click to view more
X
Price And Quantity
- 48000.00 - 95000.00 USD ($)
- 1 Unit
Product Specifications
- 76 hp @ 2200 rpm Microampere (μA)
- Laying suitability: Bituminous, Wet mix, GSB, DLC,DBM material
- 8960 Kilograms (kg)
- Manual
- Laying Capacity: 100 TPH Kg/hr
- Pavers
Trade Information
- 4 Unit Per Month
- 6 Week
- Canvas Canopy, Working & Traveling Lights,Tool Kit with Jack,Horn
- All India
- ARAI (Automotive Research Association of India)
Product Description
Mechanical drive paver finisher machine best in its class of wheel mounted paver finishers with manual control for grade and slope control giving accurate level of laid surface and quality output. It is suitable for laying bituminous, wet mix, GSB, DLC, DBM material.
- Model no. UAP-04
- Material Laying Capacity : 100 TPH
- Engine Power: 76 hp
- Screed size: 2.5m to 4.5m
- Wheels on rear axle: One on each side
- Conveyor: Mechanical
- Operator Seat: Single (Right side fix)
- Work Applicability
- Option 1: Bituminous material
- Option 2: Bituminous, Wet mix, GSB, DLC, DBM material (Dual Purpose)
Technical Specification
Power Unit
| Engine | Kirloskar Make Water-Cooled Electric Start Diesel Engine, Model 6r 1080 Ta1, 125 Hp (93 Kw) @ 2200 Rpm Or Equivalent |
| Electrical System | 12 V Dc |
| Emission Standard | Bs-Iii |
| Speed Reduction Gearbox | Two Speed Reduction Gearbox To Achieve Low Speed For Paving And High Speed For Traveling. |
Performance
| Laying Suitability | Option 1: Bituminous Material Option 2: Bituminous, Wet Mix, Gsb, Dlc,Dbm Material (Dual Purpose) |
| Laying Capacity | 125 TPH |
| Laying Thickness |
|
| Transmission | Hydrostatic |
| Working Speed | 1.27 to 24 m/min (Max.) |
| Travelling Speed | 16 km/hr (Max) |
| Weight | 9,000 kg (19,800 lb) approx. |
| Slope & Grade Control | Manual mode |
| Maintenance Shutters | On right side of machine |
Screed
| Screed Width | 2.5 m (8² 2) basic width |
| Crown (Manual) | -1° / +4° |
| Screed Heating | Yes, with 8 LPG burner facility |
| Screed Vibration | Yes (Fix Speed) |
| Screed Tamping | No. Available on request |
Under Carriage
| Rear Wheel | Two no. Pneumatic Tyre |
| Front Wheel |
|
Refill Capacities
| Fuel | 124 L (27.3 gal) |
| Hydraulic Oil | 46 L (10.1 gal) |
| Cooling System | 6.5 L (1.4 gal) |
| Engine Oil | 11 L (2.4 gal) |
Operator Station
| Control Panel Type | Fixed on Right side |
| Operator Seat | Single Operator Seat on Right Side |
| Travelling Function | Right side |
| Operating Function | Right side |
| Steering | Hydraulic |
| Brake | Caliper disc brake |
Conveyor & Auger System
| Conveyor & Auger | 2 Sets, One On Each Side |
| Conveyor Drive | Hydraulic |
| Conveyor Control | On / Off Switch Function |
| Auger Screw Size | Dia 250Mm (10³) |
| Auger Material | Ni-Hard / High Chromium Steel Material |
Hopper & Feeding System
| Hopper Operation | Hydraulic |
| Hopper Capacity | 4.25 M3 (151 Ft3) |
| Hopper Width | Working: 3.220 M (10² 6 3,4³) Closed: 2.440 M (8²) |
| Feed Tunnel Width | 1.276 M (4² 1 5„8³ ) |
Dimensions
| Operating Height | 3.30 m (10² 10³) |
| Shipping Height (canopy Tilted) | 2.21 m (7² 3³) |
| (w/o Canopy & Exhaust) | 2.54 m (8² 4³) |
| Shipping Width | 5.53 m (18² 1) |
| Length (Tractor Unit + Screed) | 2.62 m (8² 7) |
| Wheel Base | 0.80 m (2² 7) |
| Dump Height | 0.58 m (1² 107-8 |
| Thrust Roller Height | 0.57 m (1² 10) |
